The Benefits of 3D Scanning

Making sure there is no wasted space within a factory is crucial for productivity and efficiency. This means integrating steel structures and machinery should be done smartly and safely. To help make every inch of your production area count, one innovation, in particular, is redefining these capabilities: 3D scanning.

No longer just a tool for niche applications, 3D scanning is redefining how we approach our design process. By giving our engineers the ability to visualise spaces, measure thousands of dimensions, and to pre-empt potential issues in installation, we not only speed up the design process but also make our client projects run more smoothly.

Why 3D Scanning is a Game-Changer for Your Project

At Tadweld, we’ve integrated 3D scanning into our workflow to deliver a seamless project experience. Here’s how this powerful technology translates into tangible benefits for our clients:

1. Unmatched Precision and Accuracy: The Blueprint for Flawless Fabrication

Traditional measurement methods are effective, but they have their limits, especially in the intricate, often irregularly shaped environments of active industrial facilities. Think about navigating existing machinery, complex pipework, or uneven floor levels – even a tiny oversight can lead to significant headaches down the line.

The 3D Scanning Advantage:

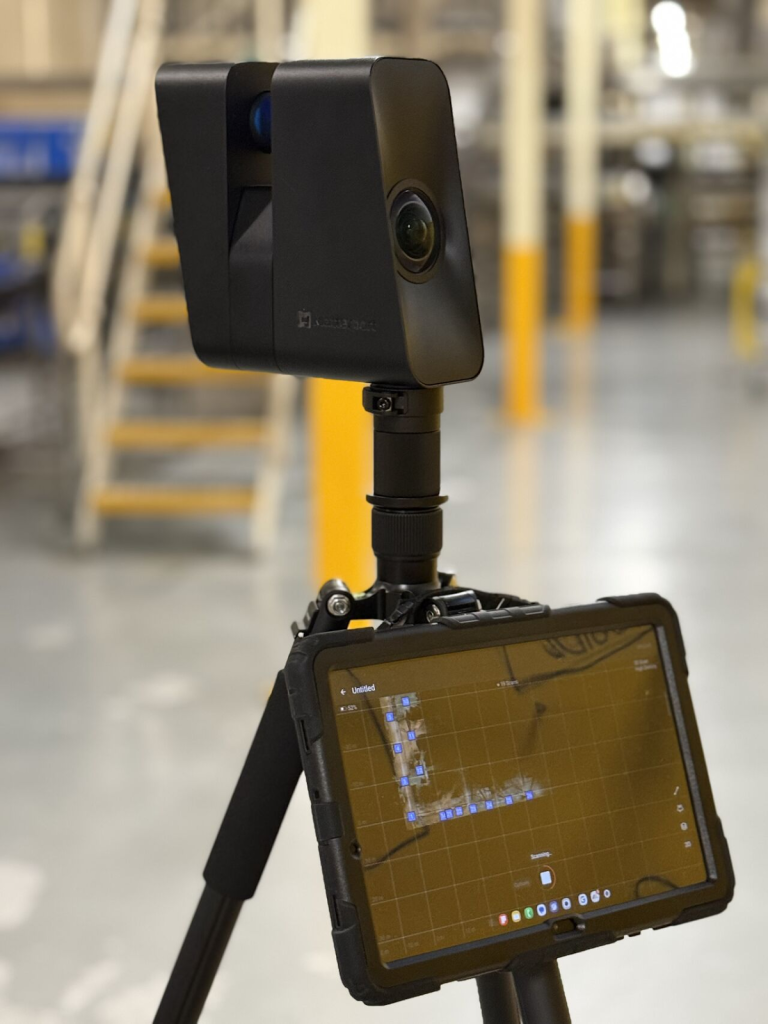

• Realistic Digital Twins: Our 3D scanners capture detailed and precise digital representations of your existing space, generating a dense “point cloud” data set. This essentially acts as a digital twin, allowing us to immediately assess the space.
• Eliminating Errors Before They Start: This high-definition data can be directly imported into our CAD (Computer-Aided Design) software. It means our designs for bespoke platforms or intricate mezzanine systems are based on exact, real-world conditions.
• Perfect Fit, Every Time: This ensures that every single component we fabricate will fit perfectly on-site, regardless of the complexity of the existing structure.

“Precision is not just a goal; it’s the starting point for every Tadweld project. 3D scanning makes this a reality, eliminating guesswork from the very beginning.” – Chris Houston, Managing Director

2. Significant Time & Resource Savings: Optimising Your Project Lifecycle

When efficiency directly impacts your bottom line, 3D scanning dramatically accelerates various stages of your project, translating directly into saved time and resources for your business.

How It Can Save You Time:

• Rapid Site Surveys: A 3D scanner can capture a comprehensive digital model of your entire site in a matter of hours. This means we obtain all necessary dimensions, spatial relationships, and identify potential interferences much faster, allowing us to move from site assessment to detailed design very quickly.
• Accelerated Design Cycles: With precise 3D scan data as our canvas, our design engineers can immediately begin working within an accurate digital environment. We can virtually fit proposed platforms, mezzanines, and walkways into the scanned space, identifying and resolving potential clashes or design challenges long before any steel is cut.
• Minimised On-Site Disruptions: By rectifying fit-up issues in the design phase, 3D scanning eliminates the need for costly on-site modifications and rework. This saves on labour and material costs, and also minimises disruption and potential downtime for your ongoing operations during the installation phase.

3. Facilitating Customisation & Seamless Integration: Tailored Solutions for Unique Spaces

Every industrial facility is unique. “One-size-fits-all” simply doesn’t exist when it comes to optimising your space for maximum efficiency and safety. 3D scanning empowers Tadweld to deliver bespoke and seamlessly integrated steel solutions.

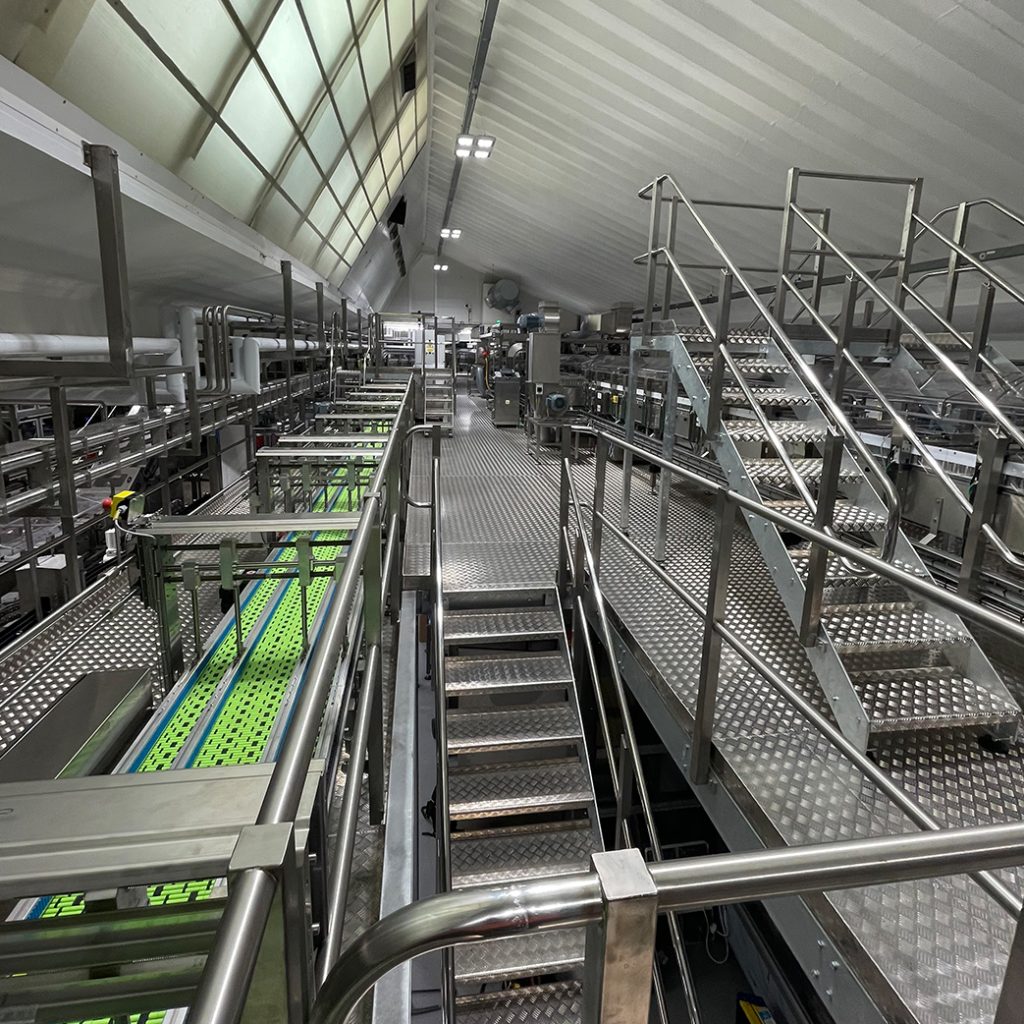

• Perfectly Tailored Designs: The detailed data provided by 3D scanning allows us to design and manufacture platforms and mezzanines that are adapted to specific environments. Whether it’s getting a structure around complex machinery, fitting a mezzanine floor into an irregularly shaped warehouse, or designing an access system with very specific height and clearance restrictions, 3D scanning provides the exact spatial intelligence required for precision customisation.
• Optimised for Existing Infrastructure: This technology is essential when our structures need to fit perfectly with your existing plant, pipework, conveyors, or other architectural elements. The 3D scan provides a complete picture of your space as it is, so we can design components that fit, helping you use your space better and keep materials moving efficiently.

Your Space, Our Expertise, Enhanced by 3D:

The result is a final installation is optimised and maximised for the unique characteristics and operational demands of your facility.

Ready to Envision Your Optimised Space?

Embracing 3D scanning is a testament to our commitment to innovation, precision, and client satisfaction. It’s about ensuring your project is delivered with greater accuracy, efficiency, and tailor-made perfection.To find out more about how our 3D scanning technology can help you, get in touch to find out more today.
